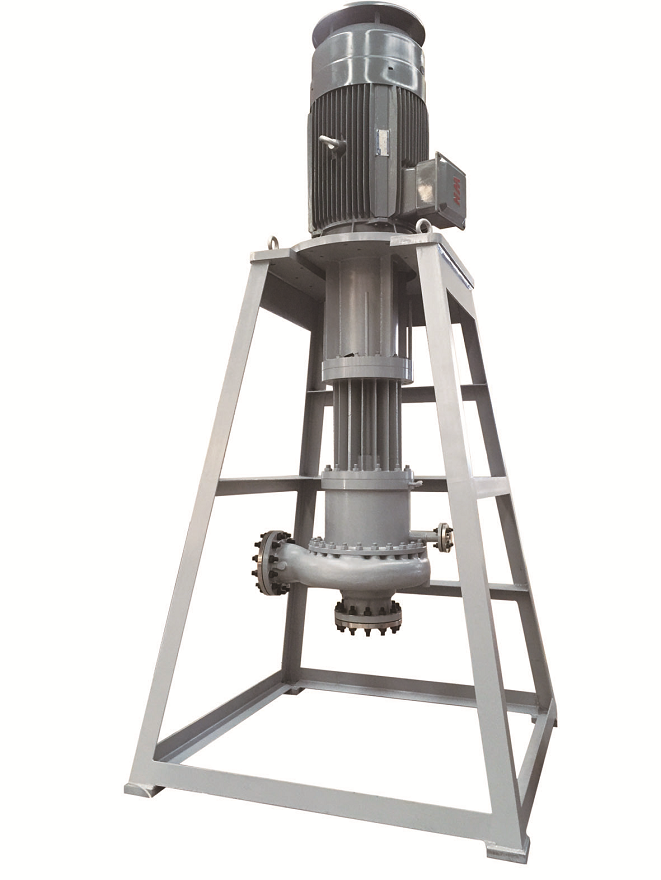

CQL型泵是我公司針對含有一定固體顆粒和易氣化介質而研制開發的一種新型立式泥漿型磁力驅動泵，該型泵參照美國石油學會API685標準設計，具有全密封、無泄漏、無污染、抗磨損、耐腐蝕能力強、安全可靠、使用壽命長等特點，適用于含有雜質顆粒、易氣化、具有腐蝕性、易燃易爆及有毒介質的輸送，可廣泛應用于石油化工、精細化工、冶金、電力等行業。

CQL型泵通過內外磁轉子進行耦合傳動，外磁轉子與電機直聯，隔離套將內磁轉子密封在泵腔內，運用磁力密封與氮?dú)庾韪艚M合，從根本上解決了含固體顆粒、含氣體介質的輸送難題。

Model CQL pump is a new type vertical slurry type magnetic drive pump developed for media containing certain amount of solid particles and subject to easy gasification. It has been designed by referencing API685 standard. It features full sealing, no leakage, no pollution, wear resistance, strong resistance to corrosion, high safety, high reliability, and long service life etc. It is applicable to conveying media containing impurity particles, media subject to easy gasification, corrosive media, inflammable media, explosive media, and toxic media. It can be widely used for petrochemical industry, fine chemical industry, metallurgy, and electric power industry etc.

Model CQL pump is driven by coupled internal and external magnetic rotors. The external magnetic rotor is directly connected to the motor. An isolation sleeve seals the internal magnetic rotor inside the pump cavity. Magnetic sealing is combined with nitrogen blocking, solving the difficult problem of conveying media containing solid particles and gas.

1、立式、磁力驅動、軸向吸人、徑向排出，占地面積小。

2、通過磁性聯軸器驅動，磁力密封與氮?dú)庾韪艚M合配置，全密封、無泄漏。

3、軸向力利用流體力學原理自動平衡。

4、優化的葉輪水力設計，適宜含雜質、含固體顆粒的物料輸送。

5、葉輪水力設計配套動力密封運行，防止了汽蝕破壞，在邊界條件下都是安全的。

6、泵的結構完全可以實現長時間干運轉，磁傳動及軸承部件壽命長。

7、泵入口處于系統的最低位，排除泵內積液比較方便和迅速。

8、泵及電機裝配好之后整體被固定在底架上，安裝方便。
